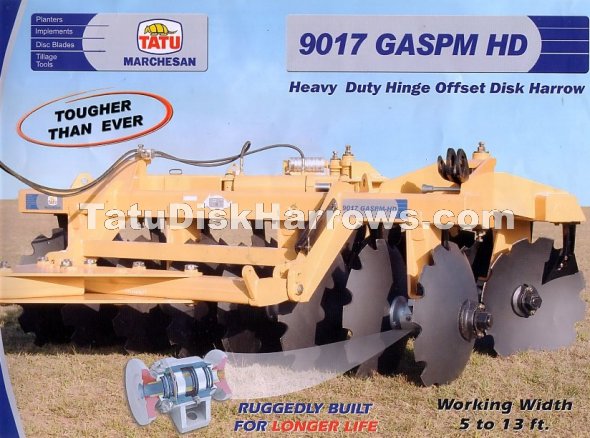

Tatu Marchesan 9017 GASPM HD
The Model 9017 GASPM HD is specifically designed to meet the extreme conditions in construction, road building, deep tillage, tilling new ground and recently deforested land.
Standard Features
- Tatu oil bath bearing assemblies with tapered roller bearings and duo-cone seals
- 1/2" x 5" x 10" gang carriers, made stonger by boxing two pieces of channel iron
- 2 1/2" round heat treated alloy steel gang axles
- Cast spacer spools
- Heat treated boron steel disk blades, notched front and rear
- Heavy duty disk blade scrapers
- Stabilizer bar for front and rear disk gangs leveling
- Adjustable offset bar to allow lateral adjustments to control side draft.
- Boxed channel iron drawbar with standard drawbar plates
- Adjustable gang angles up to 42 degrees
- Removable bushings on articulated points
Optional Features
Specifications
| Number of Disk Blades | Working Width
ft. in. (mm) | Disk Blade Dimensions | Disk Blade Spacing | Weigth per Disk
lbs (kg) | Approx Net Weight*
lbs (kg) | Tractor Drawbar Horsepower** | | 10 | 5' 10"
(1,800) | 36" x 12mm | | 673 (305) | 6,733 (3,054) | 130 - 140 | | 12 | 7' 3"
(2,200) | 38" x 12mm | 17 5/16" | 625 (283) | 7,500 (3,402) | 145 - 155 | | 16 | 10' 2"
(3,100) | and | (440mm) | 660 (299) | 10,553 (4,787) | 205 - 220 | | 20 | 13' 1"
(4,000) | 40" x 12mm | | 660 (299) | 13,198 (5,986) | 260 - 280 | *Approximate Net Weight with 36" x 12mm disk blades
**Please note that the tractor drawbar horsepower are suggested ranges and vary according to soil conditions and weight |
|
