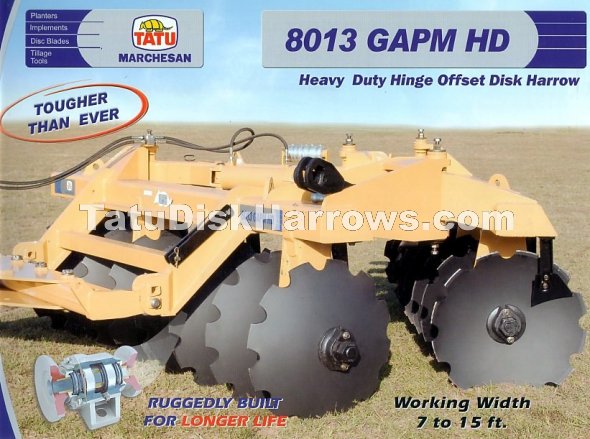

Tatu Marchesan 8013 GAPM HD
Working width 7 to 15 feet
The Model 8013 GAPM HD is specifically designed to meet the extreme conditions in construction, road building, deep tillage, tilling new ground and recently deforested land.
Standard Features
- Tatu oil bath bearing assemblies with tapered roller blade and duo-cone seals
- 1/2" x 5" x 10" gang carriers, reinforced through two welded "U" profile
- 2 1/2" round heat treated alloy steel gang axles
- Cast spacer spools
- Heat treated boron steel disk blades, notched front and rear
- Heavy duty disk blade scrapers
- Stabilizer bar front and rear disk gangs leveling
- Preforated offset bar to allow lateral adjustments under varying draft conditions
- Box type construction drawbar with standard drawbar plates
- Adjustable gang axles up to 42 degrees
- Removable bushings on articulated points
Optional Features
Specifications
| Number of Disk Blades | Working Width
ft. in. (mm) | Disk Blade Dimensions | Disk Blade Spacing | Weigth per Disk
lbs (kg) | Approx Net Weight*
lbs (kg) | Tractor Drawbar Horsepower** | | 10 | 5' 10"
(1,800) | 36" x 12mm | | 673 (305) | 6,733 (3,054) | 130 - 140 | | 12 | 7' 3"
(2,200) | 38" x 12mm | 17 5/16" | 625 (283) | 7,500 (3,402) | 145 - 155 | | 16 | 10' 2"
(3,100) | and | (440mm) | 660 (299) | 10,553 (4,787) | 205 - 220 | | 20 | 13' 1"
(4,000) | 40" x 12mm | | 660 (299) | 13,198 (5,986) | 260 - 280 | *Approximate Net Weight with 36" x 12mm disk blades
**Please note that the tractor drawbar horsepower are suggested ranges and vary according to soil conditions and weight |
|
Resources
This product was added to our catalog on Friday 15 December, 2006.
